EQUIPMENT & MANUFACTURING
Mining equipment: built in Freetown, engineered in Europe

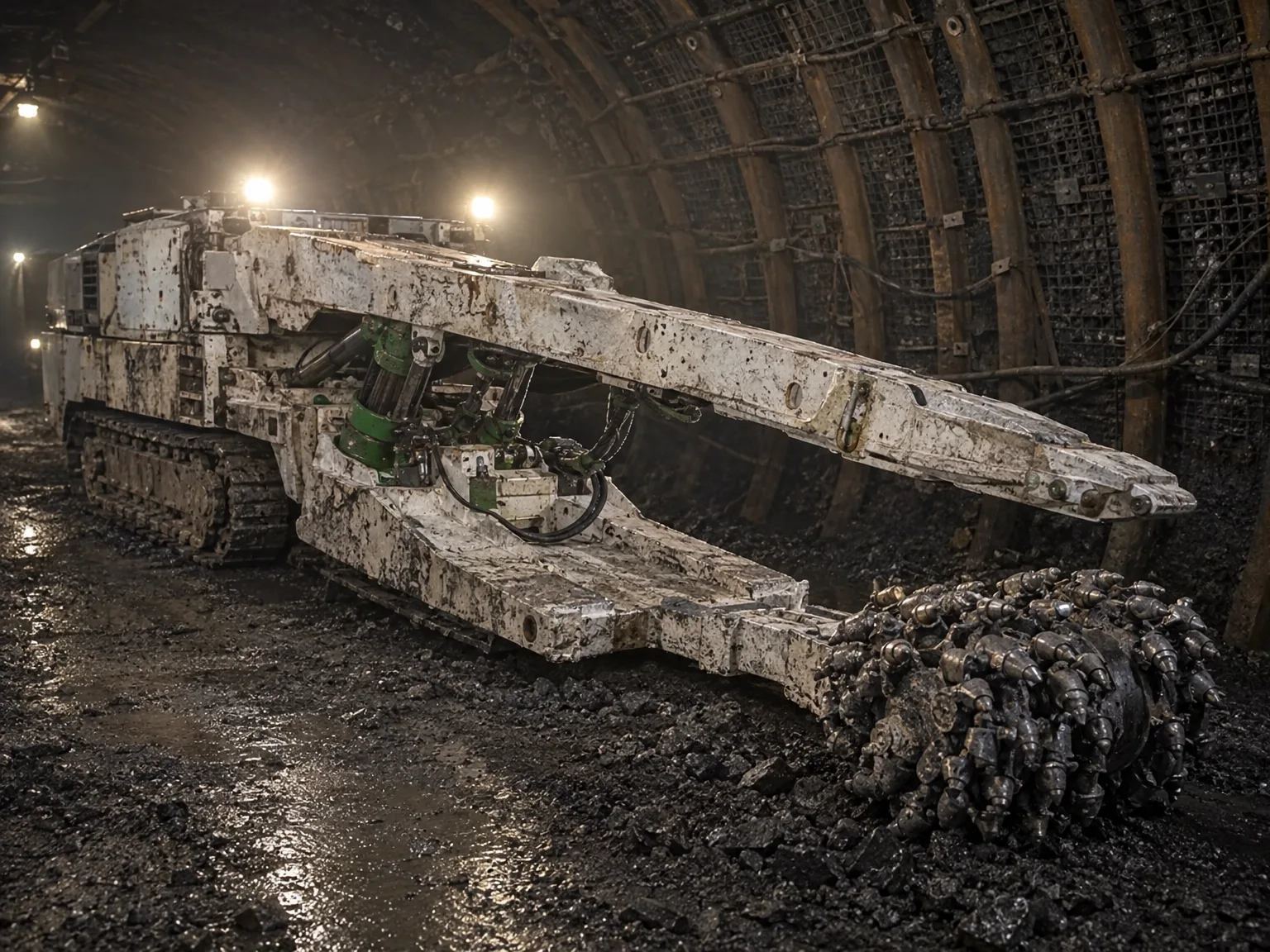

Two sources, one supplier. Our Freetown workshop builds gold wash plants, trommels, jigs and sluices for alluvial projects. For hard-rock, underground and processing plants we supply industrial machinery as representative of VACAT sp. z o.o. and Hydromel sp. z o.o., Poland: crushers, mills, screens, flotation cells, conveyors, winches, roadheaders and hydraulics. Delivered, commissioned and serviced by us in Sierra Leone, Liberia, Mali, DR Congo and Madagascar.
Why buy through Starlight
Sized for your ore
We test your material before we size the plant. Screen apertures, water flow, riffle design, crusher gap and mill charge match the deposit, not a catalogue.
Spare parts in Freetown
Every wear part is stocked or fabricated in our workshop. A broken screen is replaced in days, not shipped from overseas in months.
Delivered and commissioned
Transport to site, assembly, water setup and operator training are part of the price. You start producing, not assembling.
Service after delivery
Maintenance contracts, on-site repairs and upgrades from the same team that built the machine.

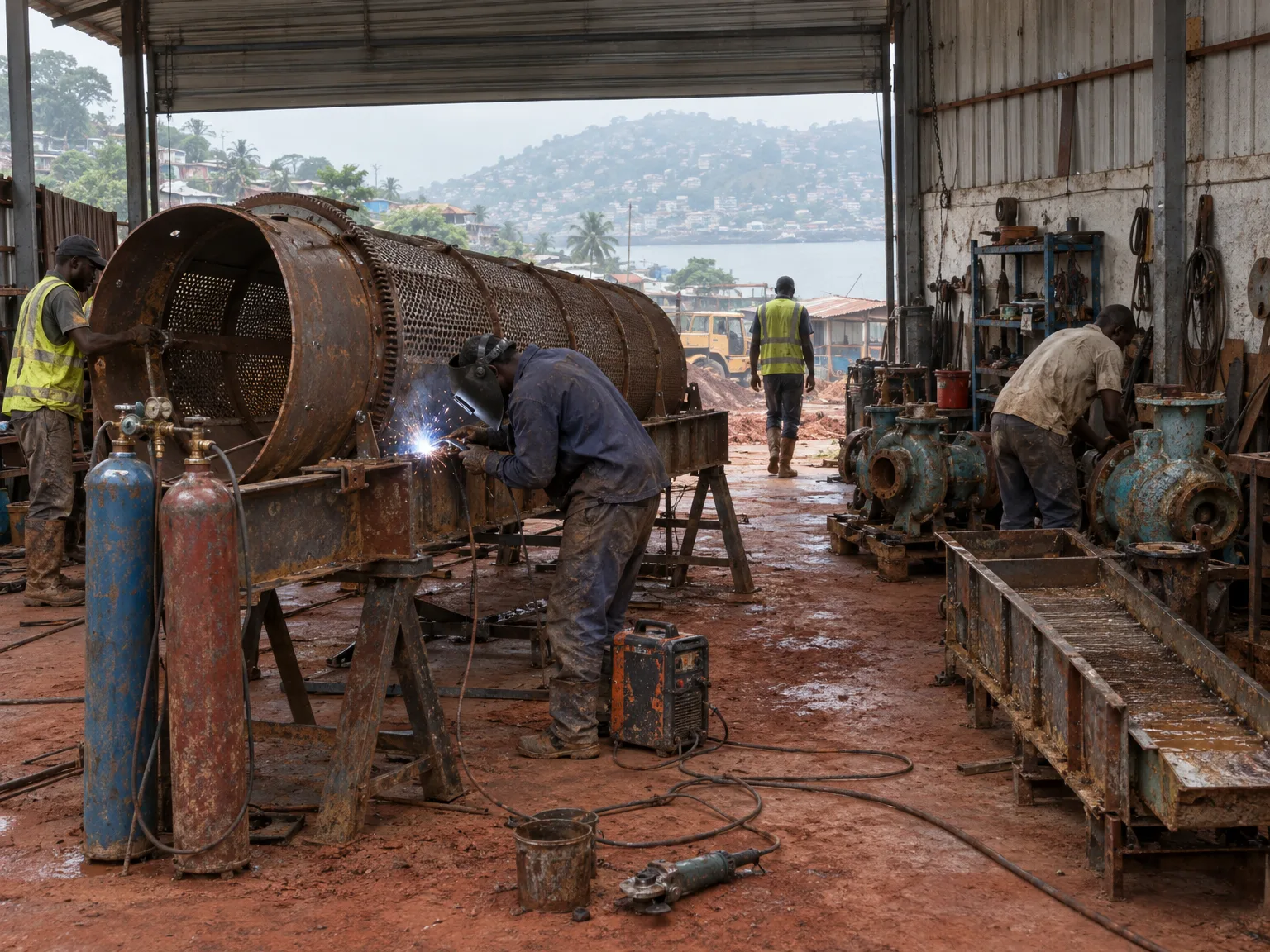

Built in our Freetown workshop
Alluvial and small-scale equipment fabricated locally. Standard sizes listed below; every unit can be adapted to your throughput and site conditions.

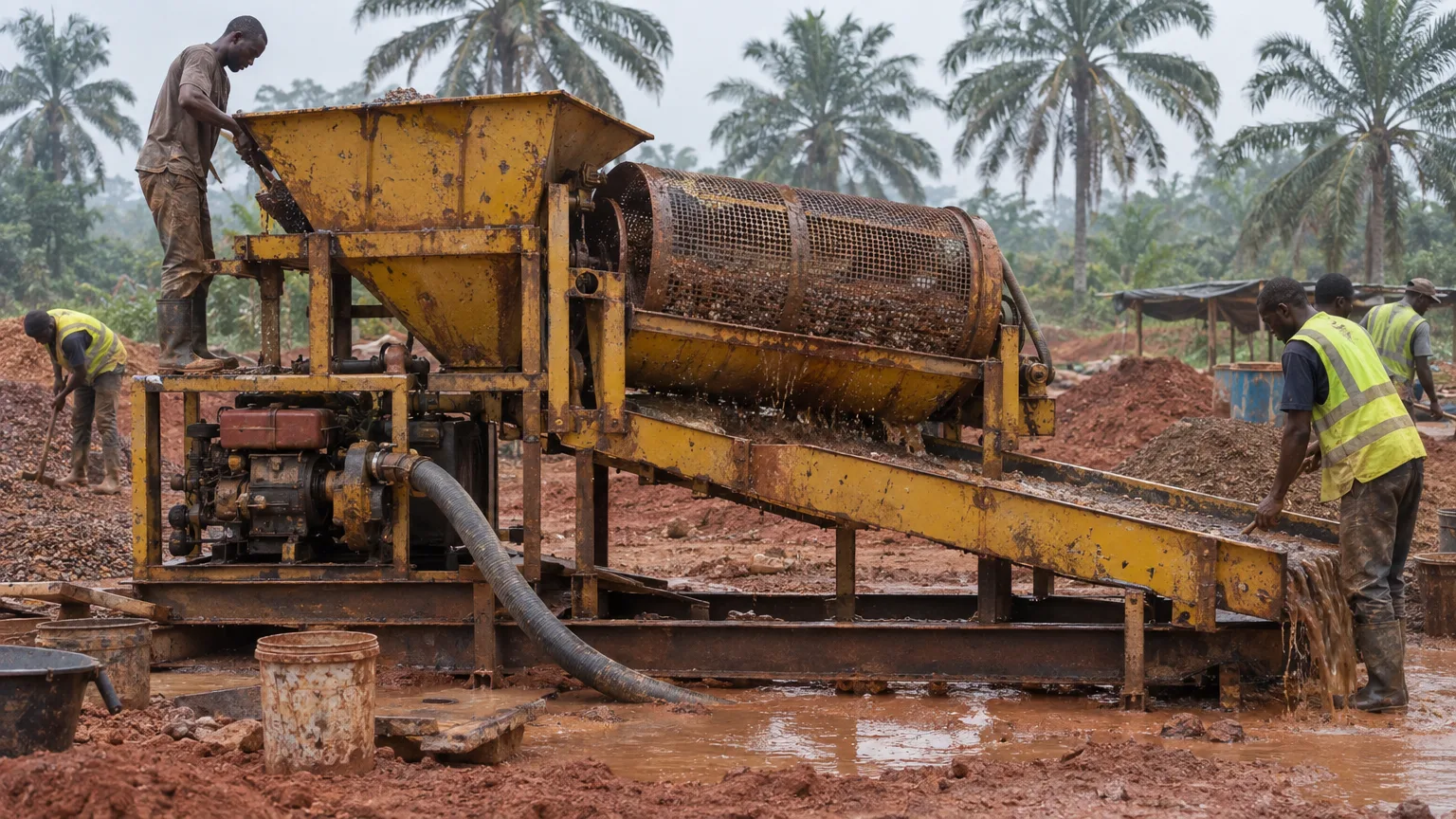

Gold wash plants
[10–100] t/hComplete alluvial gold plants with hopper, trommel, sluice and water pump.

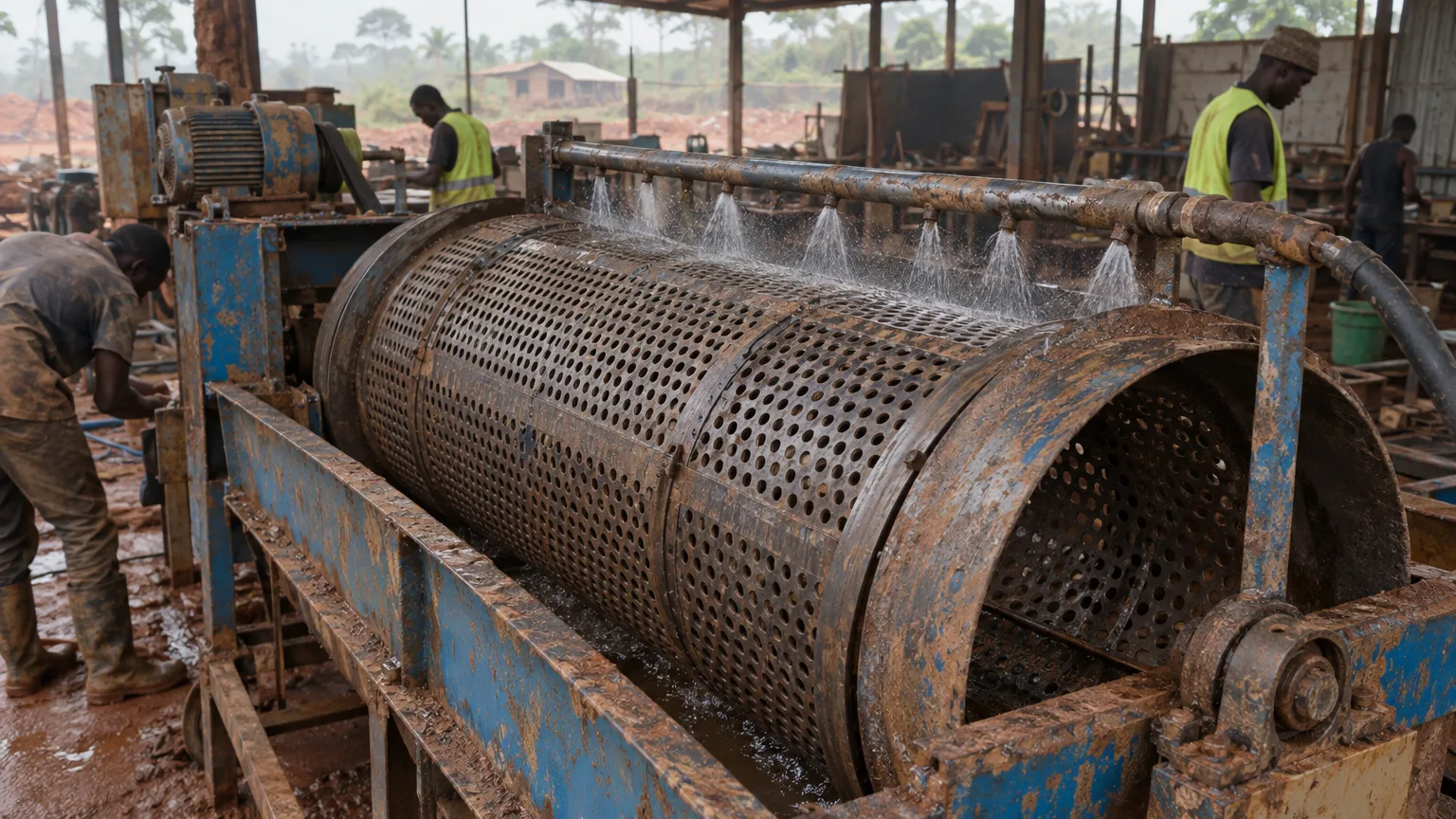

Trommel screens
[5–150] t/hRotary trommels with replaceable screen panels and spray bars.

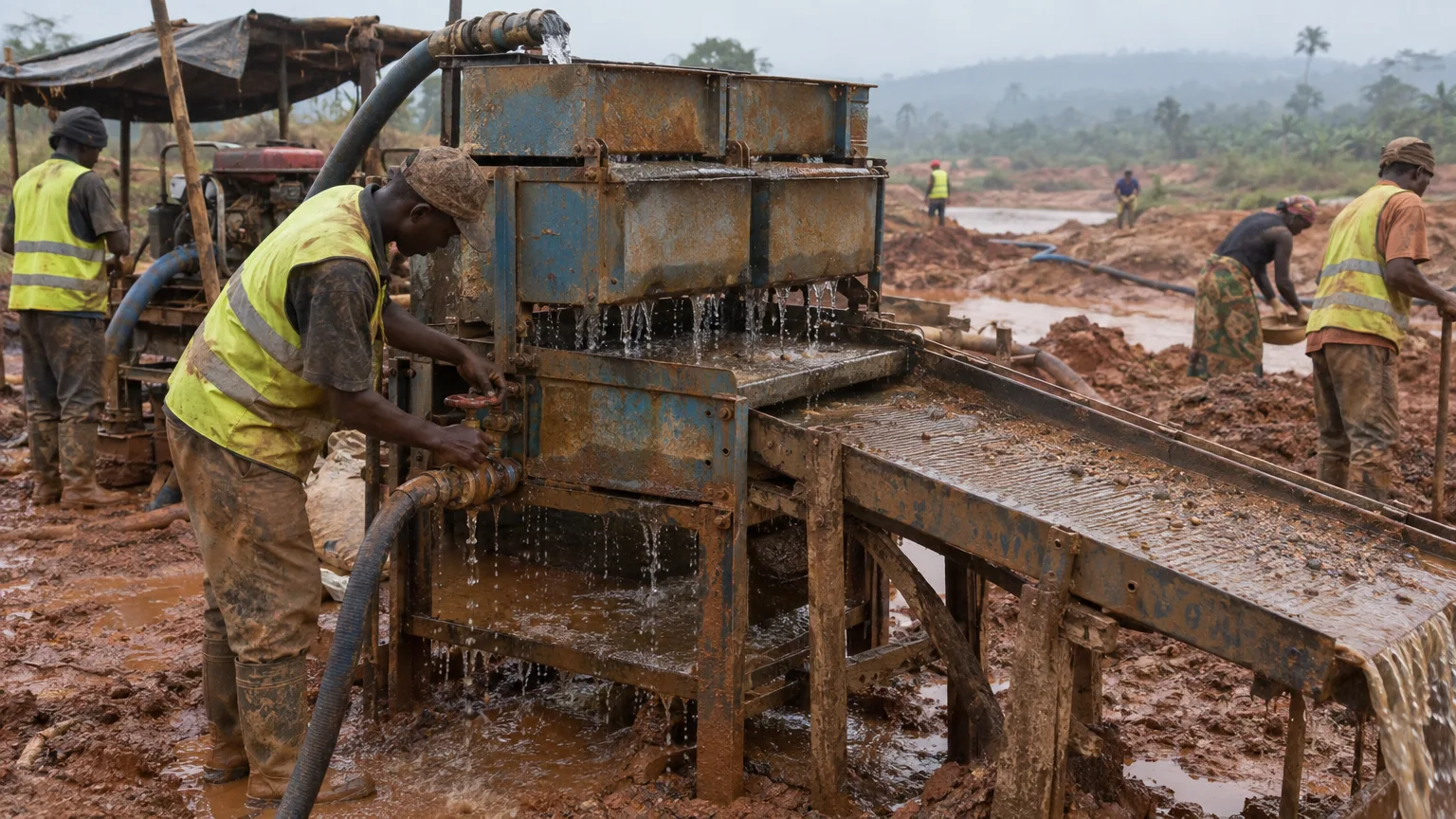

Jigs and shaking tables
[1–20] t/hGravity concentrators for fine gold recovery after the sluice.

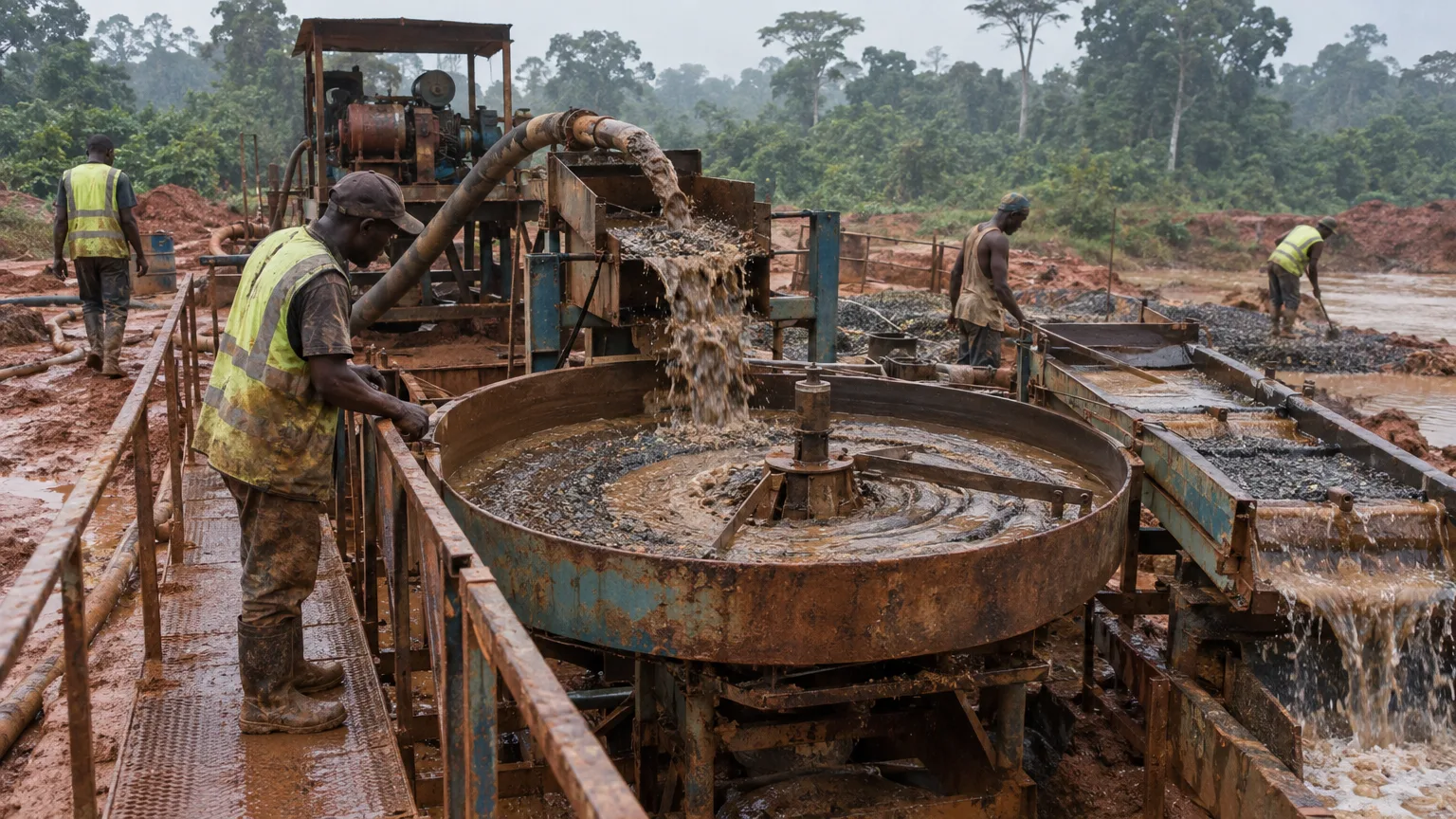

Diamond jig plants
[5–50] t/hRotary pan and jig units for alluvial diamond gravel.

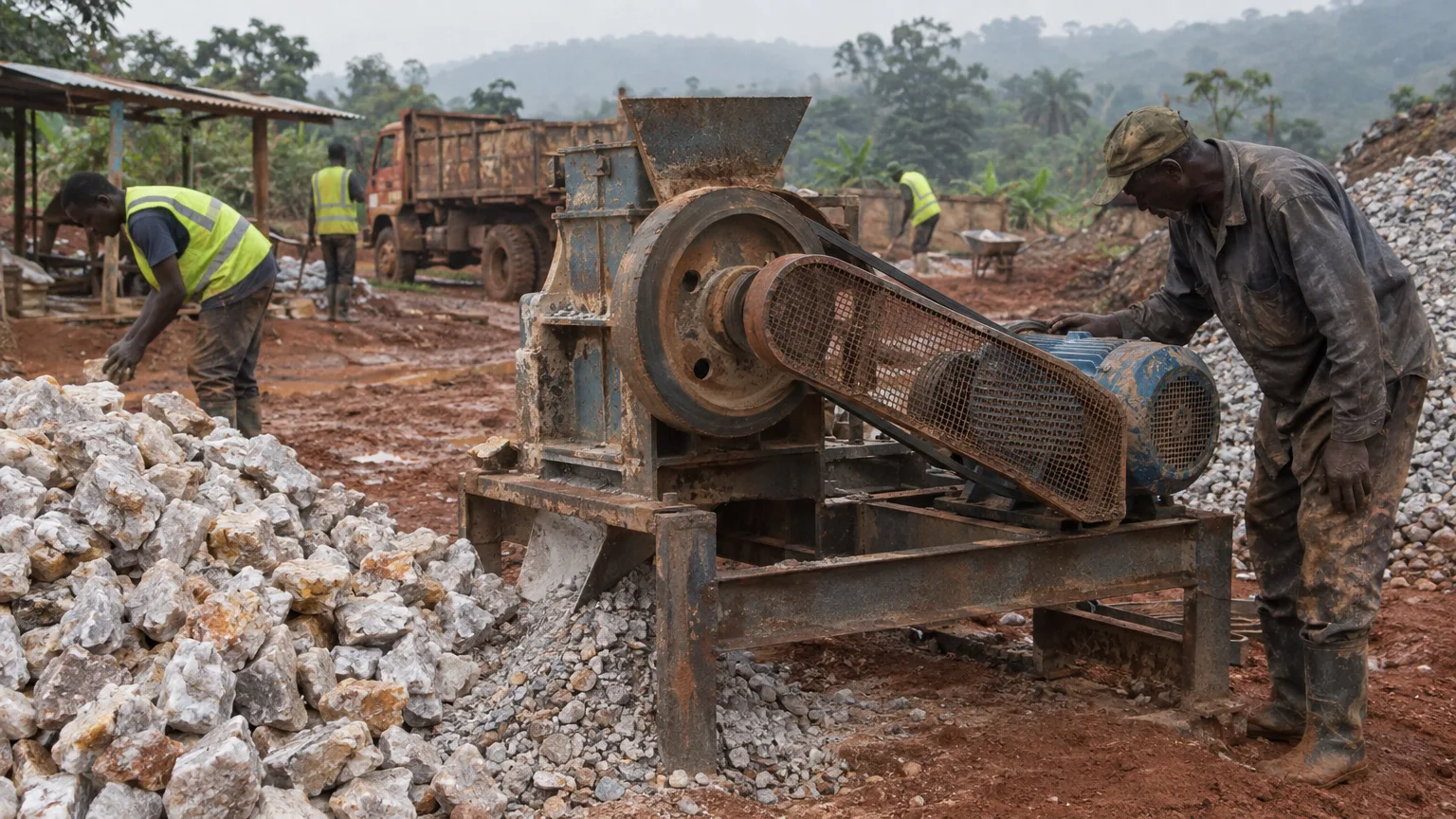

Small crushers and mills
[1–10] t/hSmall jaw crushers and hammer mills for pilot hard-rock work. Larger units come from our European partner, see below.

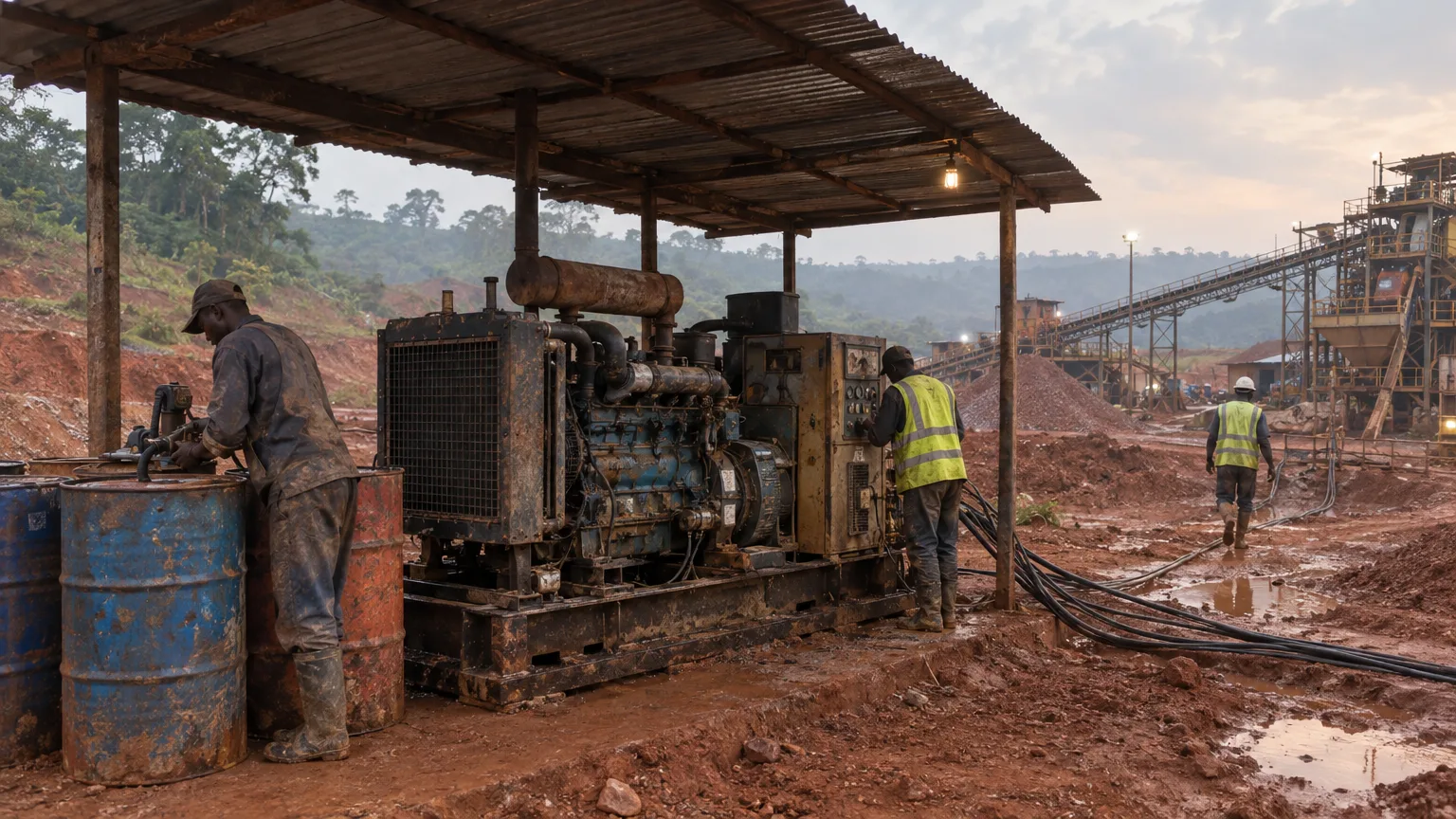

Pumps and generators
[10–500] kVASlurry and water pumps, diesel generator sets, sized and installed for the plant.

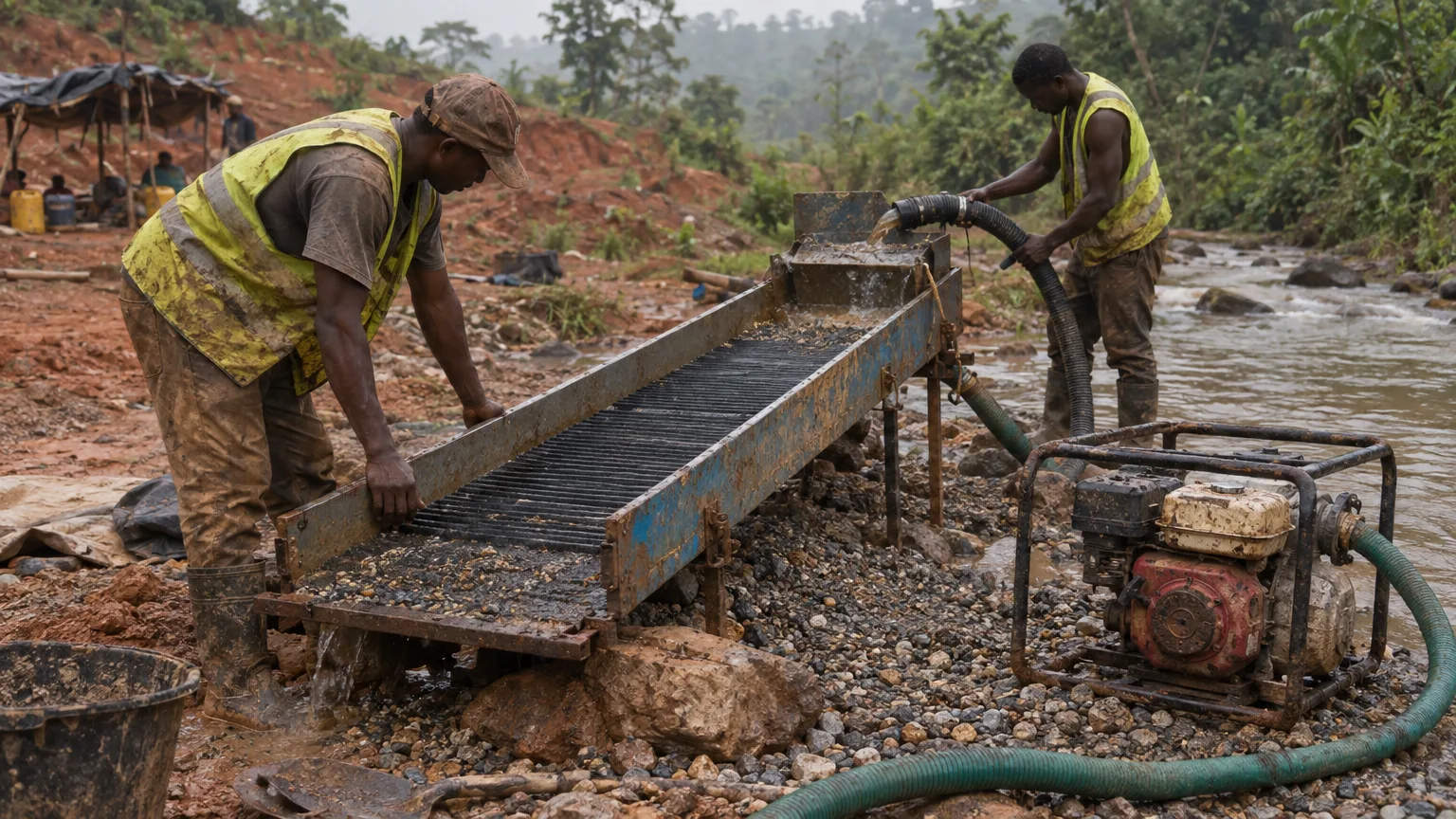

Small-scale mining kits
[1–5] t/hCompact sluice and pump sets for artisanal miners and cooperatives.

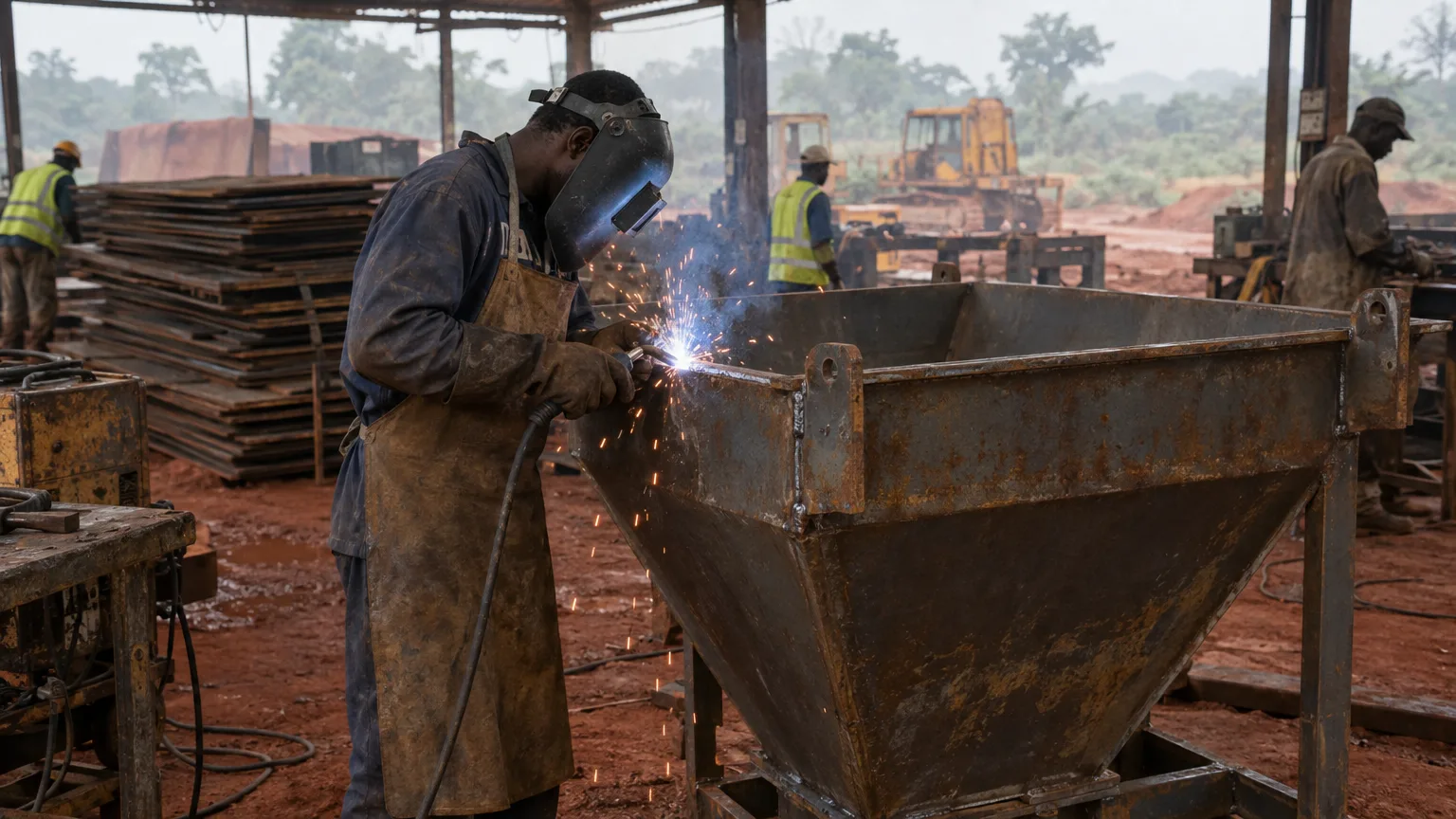

Custom fabrication
Hoppers, chutes, conveyors, tanks and structural steel to drawing.
Heavy machinery from VACAT and Hydromel, Poland
For hard-rock, underground and processing projects we supply industrial machinery as representative of VACAT sp. z o.o. and Hydromel sp. z o.o., Poland: crushers, mills, screens, flotation, conveyors, winches, roadheaders and hydraulics. Specifications below are the manufacturer’s catalogue values.
CRUSHING & GRINDING

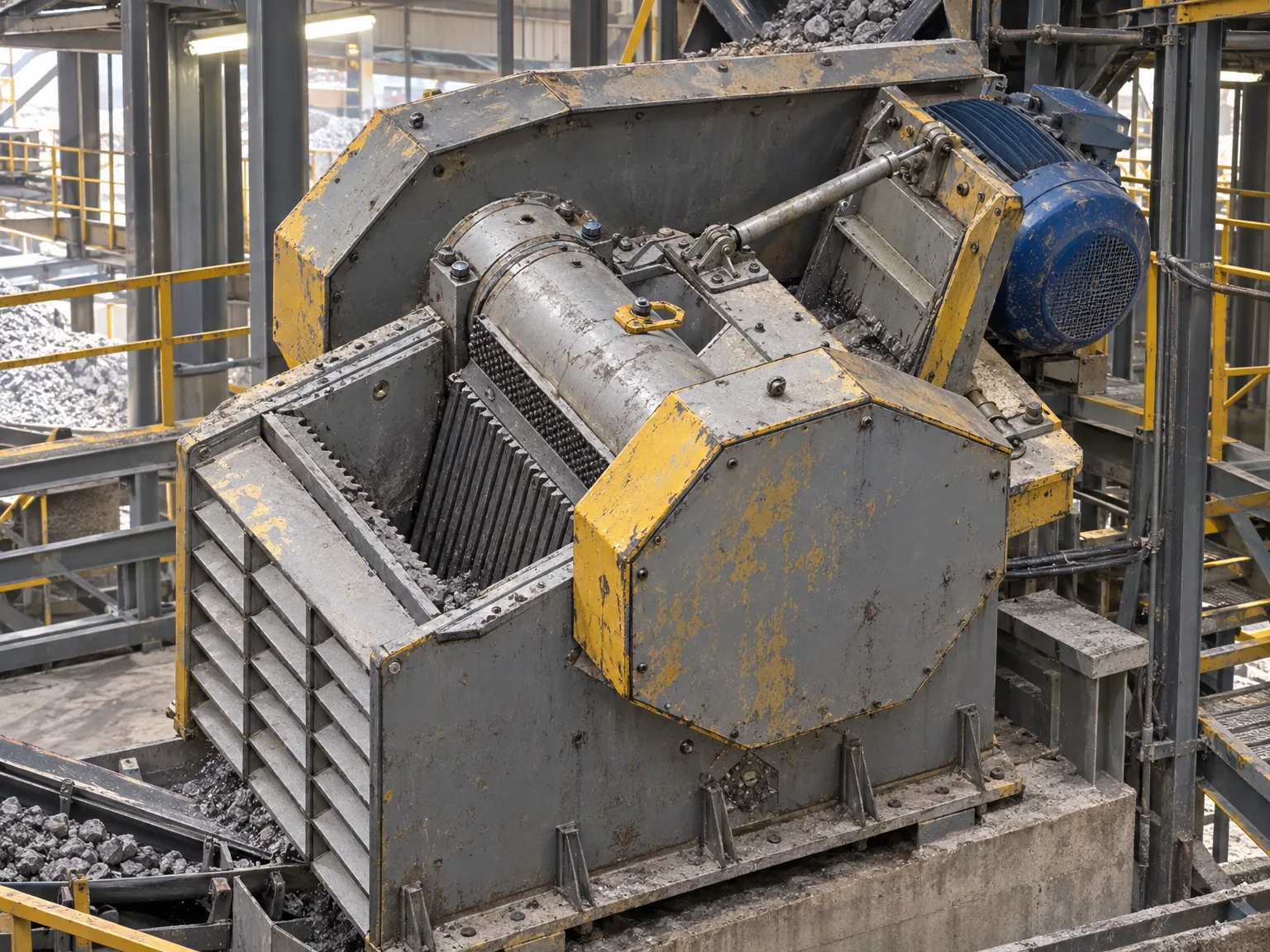

Jaw crushers VT.KS 500–1000
Primary and intermediate crushing of hard and medium-hard rock up to 200 MPa compressive strength. Six sizes from 500 to 1000 mm inlet, 75 to 220 kW, with adjustable outlet gap and interchangeable jaw profiles.
Specifications

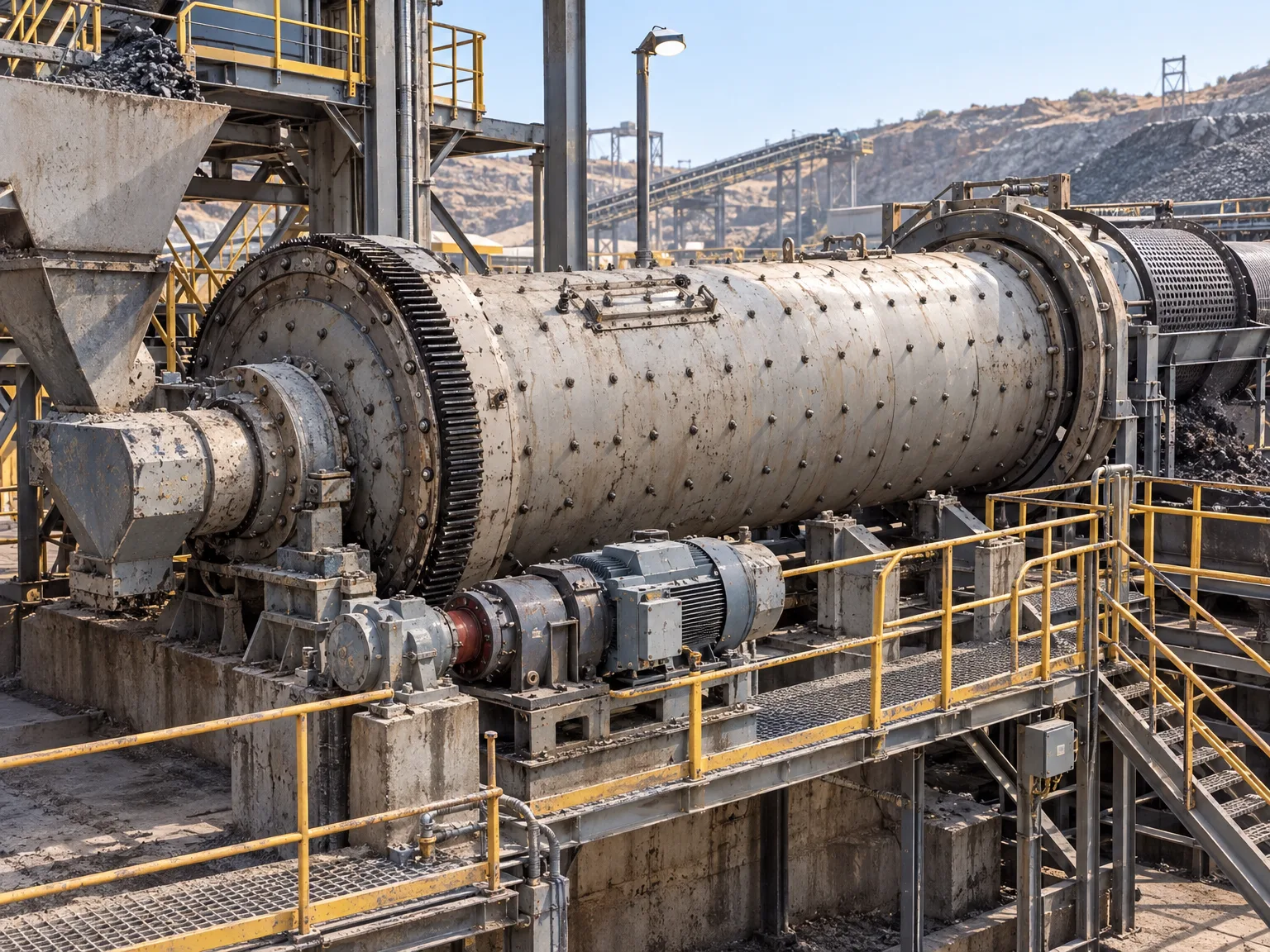

Ball, rod and tube mills
Rotating-drum mills with free grinding media for medium-hard and soft ores. Tube mills for continuous throughput, flow mills for high tonnage, and small cyclic mills for batch grinding below a few tonnes per hour.
Specifications
SCREENING & PROCESSING

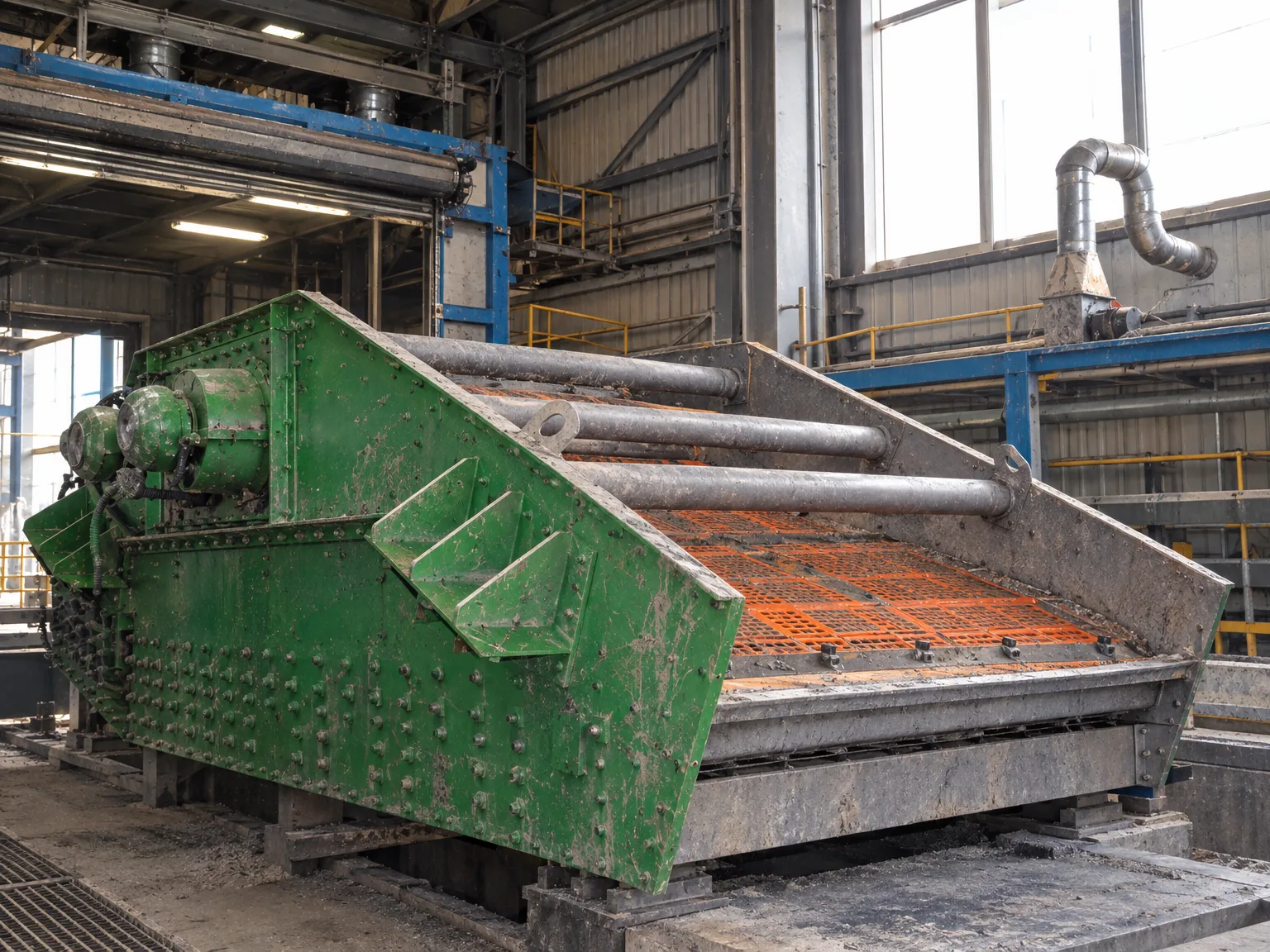

Vibrating screens and classifiers
Circular-motion and linear-motion screens with polyurethane modular decks for wet and dry classification, plus a dedicated dewatering screen for fine material. Capacities from 200 to 1200 t/h.
Specifications

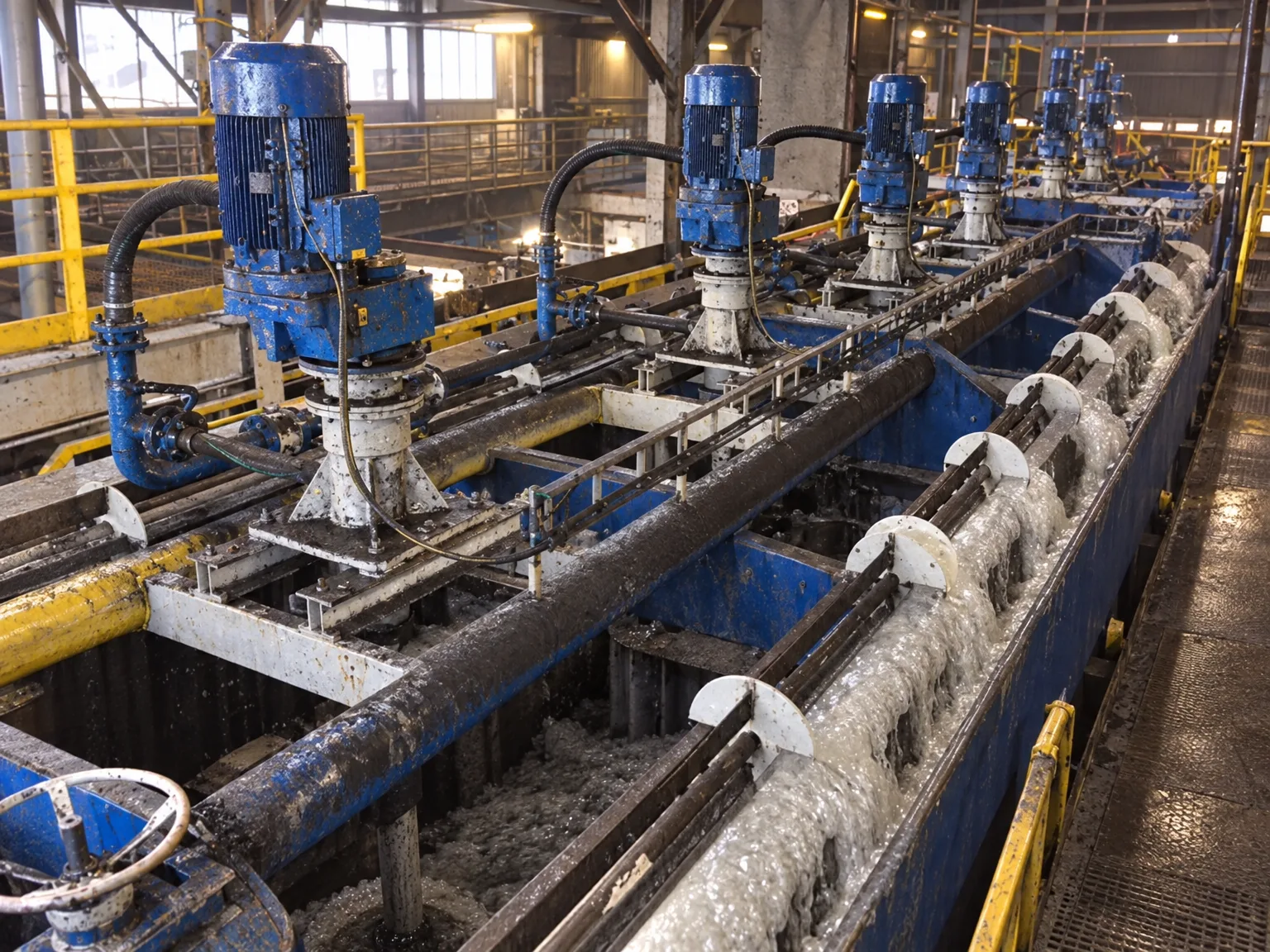

Flotation machines IZ-5 to IZ-16
Multi-chamber mechanical flotation cells for fine ore slurry, 0 to 0.3 mm. Three sizes from 48 to 96 m³ total volume with rotor and scraper drives, compressed-air supply and IP54 electrics.
Specifications

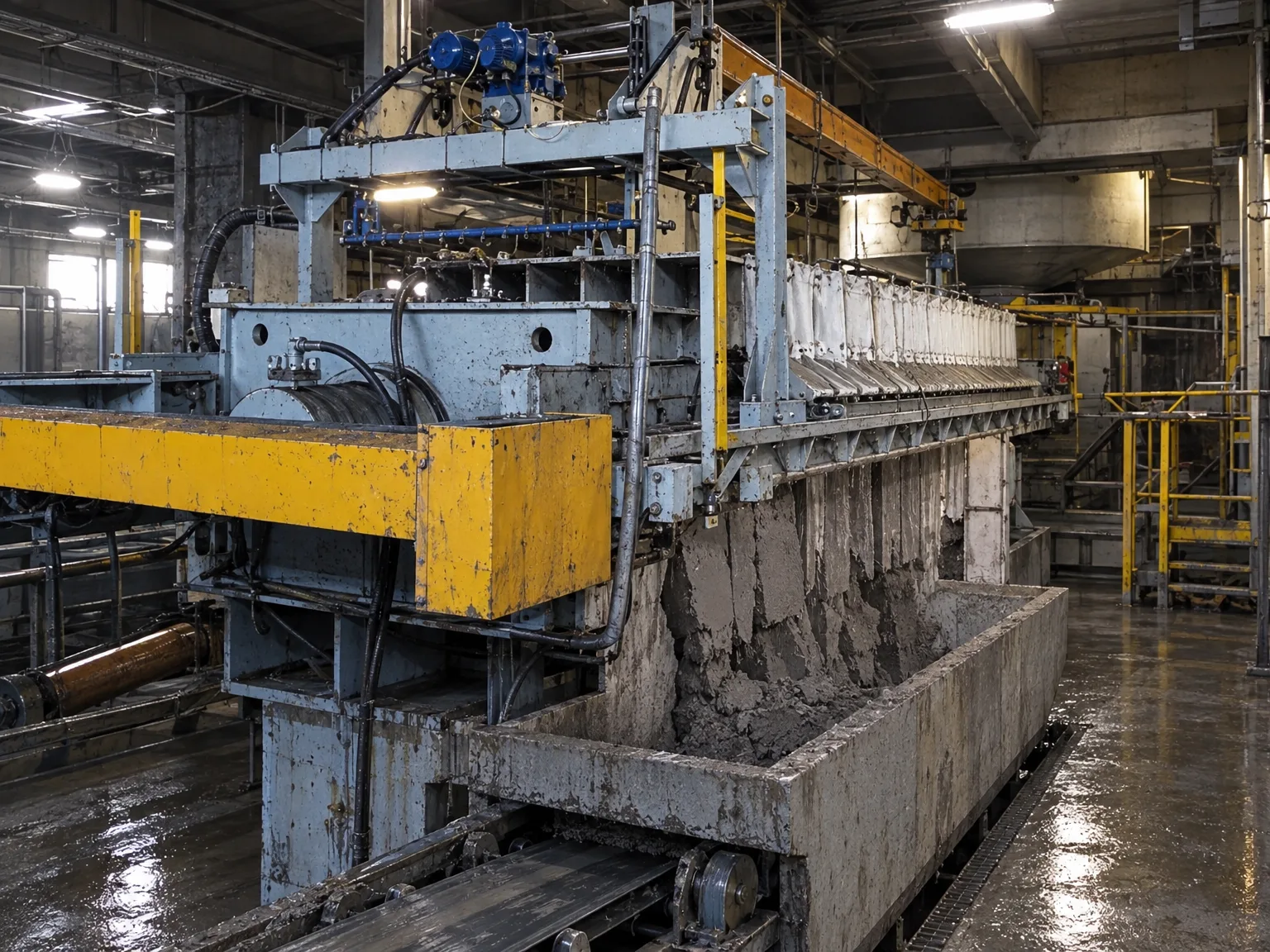

Thickeners, filter presses and dewatering
Equipment for recovering process water and producing dry, stackable tailings: lamellar thickeners with 650 to 5000 m³/h flow, an automatic chamber filter press, and a vibrating basket centrifuge for 0 to 20 mm material.
Specifications
CONVEYING & HAULAGE

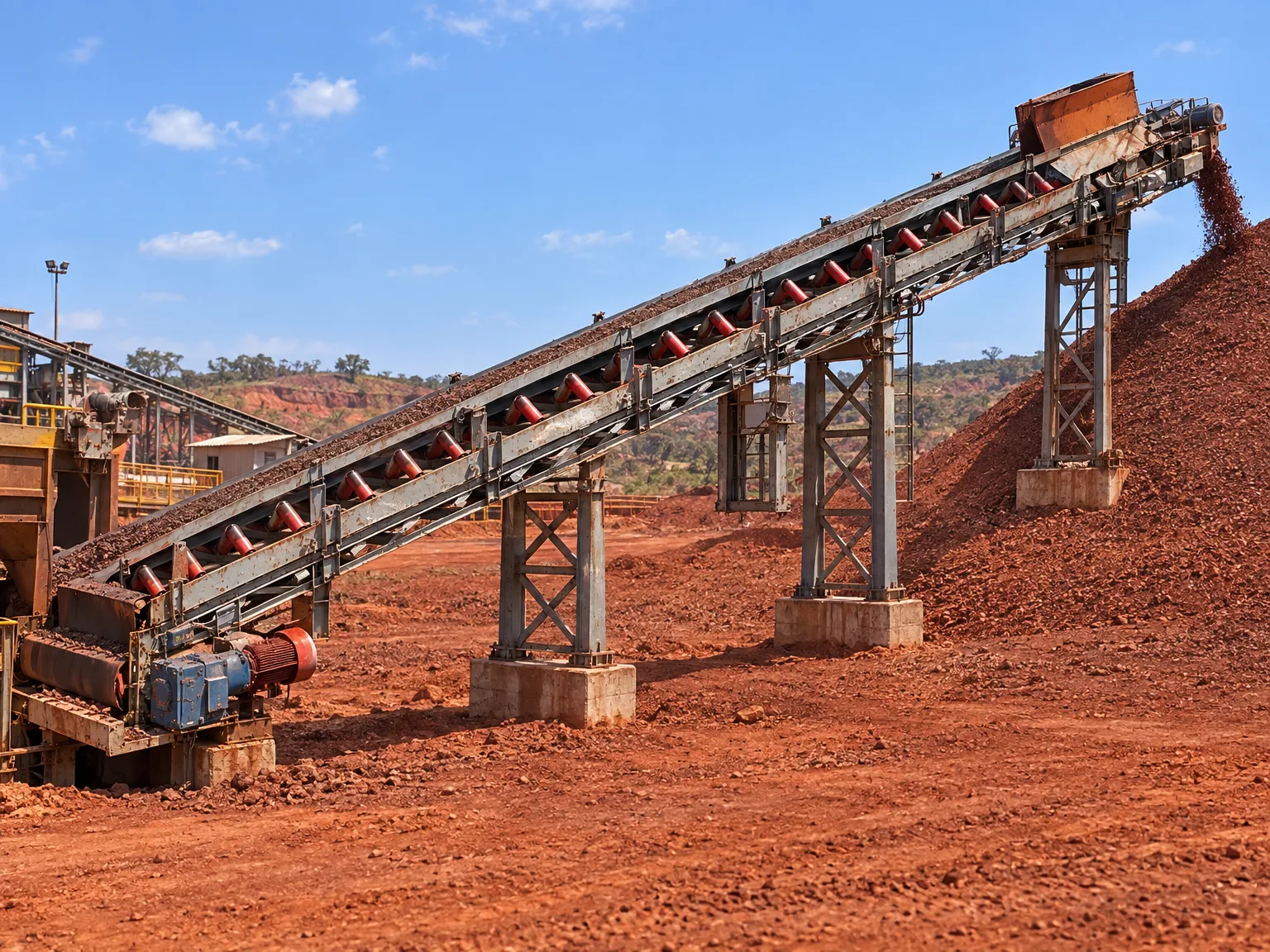

Belt conveyors VT 800–1400
Modular belt conveyors from 800 to 1400 mm belt width, engineered for compact installation and quick relocation. Four families from auxiliary conveyors at 500 t/h to main haulage lines at 2000 t/h, including a gearless electric-drum drive.
Specifications

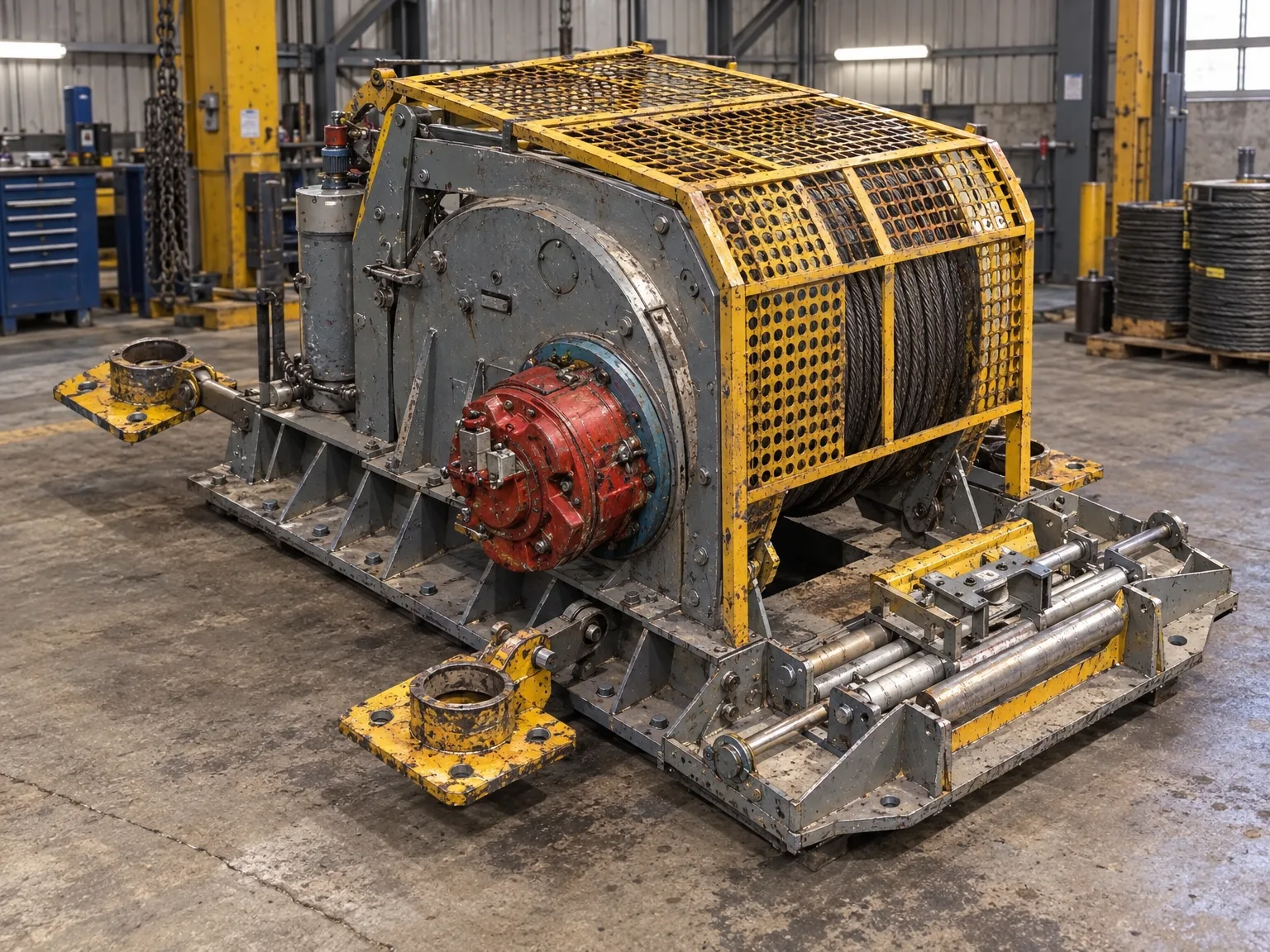

Mine winches 24 to 225 kN
Rope winches for moving heavy equipment, positioning supports and pulling wagons in mines and on steep surface haul routes. Electric, hydraulic and pneumatic drives, pulling forces from 24 to 225 kN, rated for methane and dust hazard zones.
Specifications
HYDRAULICS & AUXILIARIES

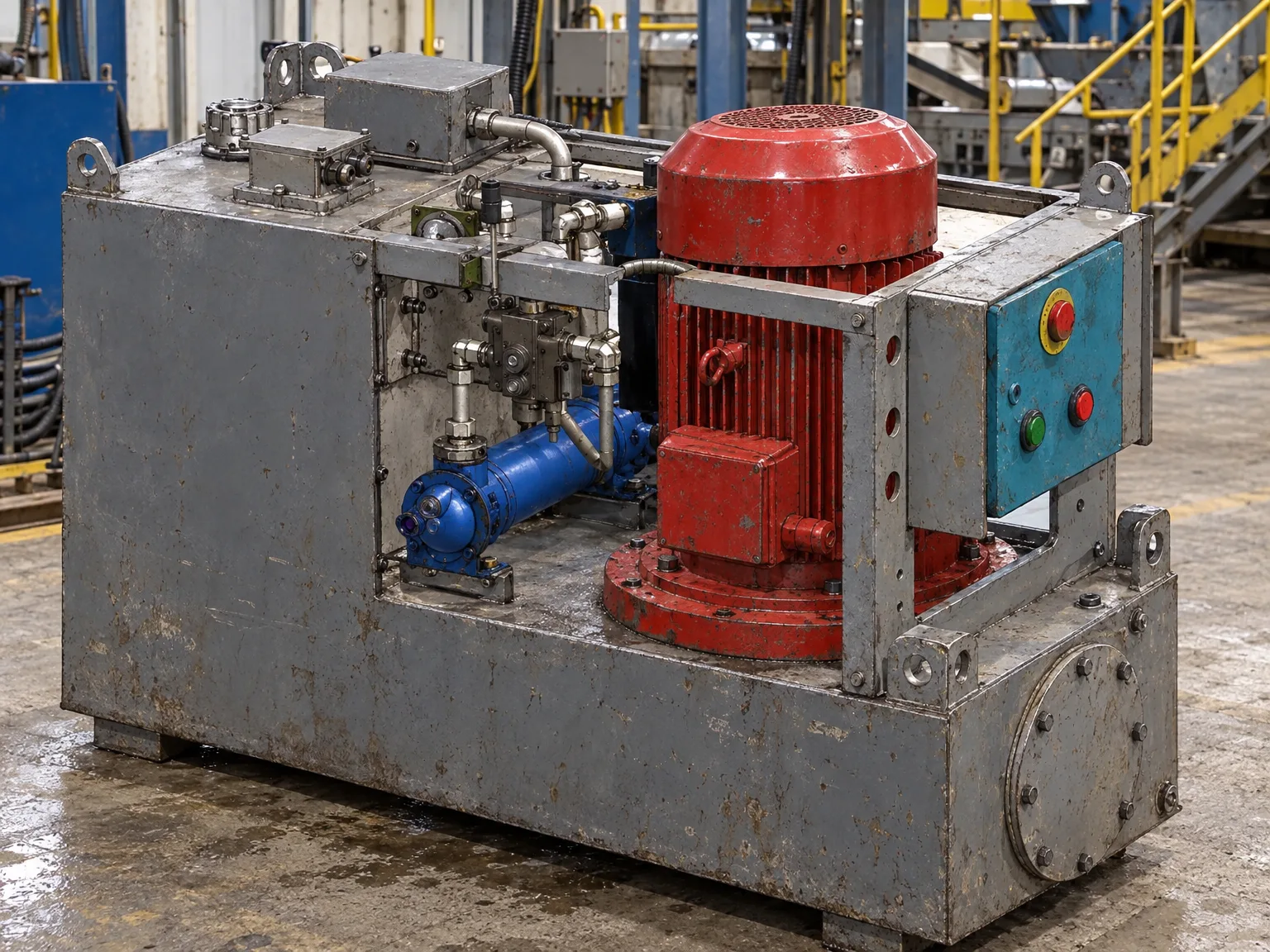

Hydraulic power units HAZV
Stationary hydraulic power packs to drive rock drills, roof bolters, hoists, injection pumps and other hydraulic tools. Ten standard sizes from 7.5 to 90 kW, gear or piston pumps, open or load-sensing circuits, explosion-protected versions for underground use.
Specifications

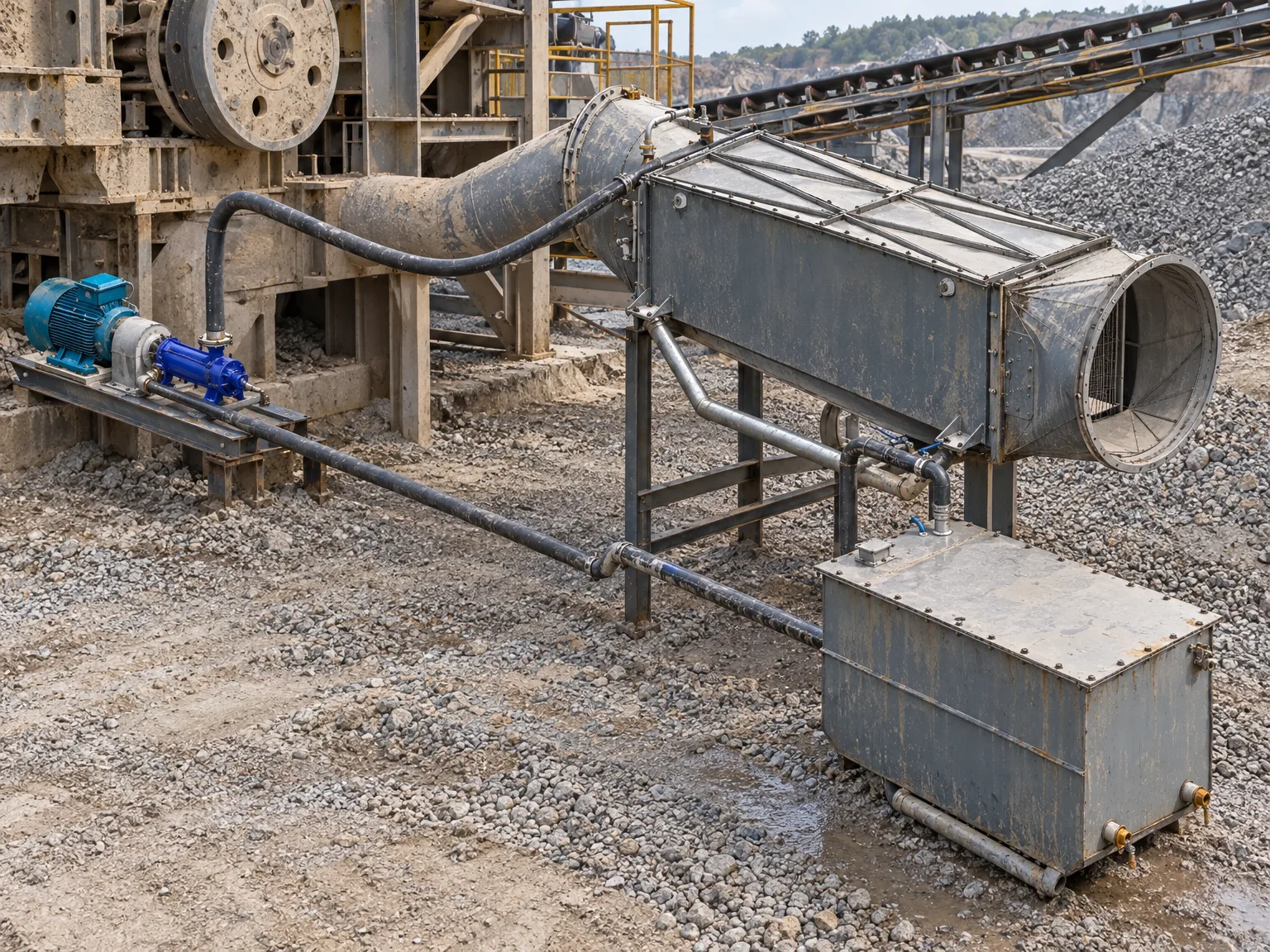

Wet dust collector OMV-1000
Stationary wet scrubber that removes rock and coal dust from the air at crushers, transfer points, bins and processing plants. 630 m³/min nominal air flow and 96 to 98 percent dust removal.
Specifications
From enquiry to first wash
- 01
Material test
Send a sample or invite us to site. We check size distribution, clay content and gold size.
- 02
Design and quote
Plant flow sheet, drawing, throughput and fixed price with delivery date.
- 03
Manufacturing
Fabrication in Freetown, [4–10] weeks depending on plant size. Factory test with water before dispatch.
- 04
Delivery and commissioning
Transport, assembly on site, water and power setup, first production run with your operators.
FAQ
Frequently asked questions
How much does a gold wash plant cost?
A [10 t/h] trommel wash plant with pump starts at around [USD 25,000] ex works Freetown. A [50 t/h] plant with jigs is in the range of [USD 90,000 to 150,000]. Final prices depend on material test and configuration.
Do you deliver outside Sierra Leone?
Yes. We deliver and commission in Liberia, Mali, DR Congo and Madagascar through our connected operations there, and to other African ports on request. Commissioning teams travel with the equipment.
Where does the heavy machinery come from?
Crushers, mills, screens, flotation cells, conveyors, winches, roadheaders and hydraulic units are manufactured in Poland by VACAT sp. z o.o.; hydraulic cylinders and powered supports by Hydromel sp. z o.o. Starlight Minerals represents both in its markets and handles specification, import, installation, commissioning, training and after-sales service.
Can you repair equipment from other manufacturers?
Yes. Our workshop repairs and rebuilds wash plants, trommels, crushers and pumps of any brand. See our services page.
What is the difference between a trommel and a sluice?
A trommel is a rotating screen that washes and sizes gravel, removing oversize rocks. The sluice, placed after the trommel, is where gold settles behind riffles. A wash plant combines both with a feed hopper and pump.
CONTACT
Need a plant or a machine sized for your site?
Describe your material, target throughput and country. We send a proposed configuration, lead time and price within one week.
